2019 GMC Terrain Oil Capacity, Types, & Filters

Your ultimate DIY maintenance guide for the 2019 GMC Terrain oil change is here! No more searching – find all the critical oil specs for your 2019 GMC Terrain, including exact engine oil capacity, the manufacturer recommended oil viscosity and type, and the correct OEM and aftermarket oil filters.

We cover all available engine options categorized by their specific engine codes, ensuring you get pinpoint accuracy for your specific vehicle configuration. Keep reading to discover everything required for a successful 2019 GMC Terrain oil change!

Scroll Table ➜

Engine & Code	Oil Capacity	Oil Viscosity/Type	Oil Filter
1.5L 4-cylinder [V] LYX V Turbo	4.2 quarts (with filter) FWD 5.3 quarts (with filter) 4WD	SAE 0W-20 (All TEMPS)	GM 25206966
1.6L 4-cylinder [X] LTG X Turbo	5.3 quarts (with filter)	SAE 0W-40 (Below -29°C) SAE 5W-30 (All TEMPS)	GM 25206966
2.0L 4-cylinder [U] LH7 U Diesel Turbo	6 quarts (with filter) 4WD 5 quarts (with filter) FWD	SAE 0W-30 (Below -29°C) SAE 5W-30 (All TEMPS)	GM 55588497

Select Your 2019 GMC Terrain Engine Option

1.5L 4-cylinder Engine Code [V] LYX V Turbo

Engine:

1.5L 4-cylinder [V] LYX V Turbo [aka 1.5L L4 (Gas)]

Body & Trims:

Denali, SL, SLE, SLT

Oil Capacity:

4.2 quarts (with filter) FWD
5.3 quarts (with filter) 4WD

Oil Viscosity/Type:

SAE 0W-20 (All TEMPS)

OEM Oil Filter:

GM 25206966

Oil Filter Replaces:

12640445, 12683286, 12696048, 12706595, 25206377

2019 GMC Terrain 1.5L 4-cylinder [V] LYX V Turbo oil change details

Oil Grade:

SEOC3

Oil Capacity:

4.2 quarts. (with filter). For Front-Wheel Drive (FWD) models, this is the capacity with the filter. Always check the oil level after refilling.
5.3 quarts. (with filter). For Four-Wheel Drive (4WD) models, this is the capacity with the filter. Always check the oil level after refilling.

Oil Viscosity/Type:

SAE 0W-20 (All TEMPS)

Name of Oil Filter:

N/A

Wix Oil Filter:

WL10290-EA

Wix Air Filter:

N/A

Coolant Capacity:

7 quarts

Oil Drain Plug Torque:

18 ft/lbs (Oil Drain Plug)

Notes:

This specification has been updated from the Dexos 1 Gen 2 standard to the newer General Motors (GM) Dexos 1 Gen 3 standard.

How much oil does the 2019 GMC Terrain 1.5L 4-cylinder ([V] LYX V Turbo) take?

A complete oil change for the 2019 GMC Terrain 1.5L 4-cylinder (with engine code [V] LYX V Turbo) requires 4.2 quarts (with filter) FWD
5.3 quarts (with filter) 4WD of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2019 GMC Terrain 1.5L 4-cylinder ([V] LYX V Turbo)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2019 GMC Terrain 1.5L 4-cylinder is using:

SAE 0W-20 (All TEMPS)

Ensure the oil you choose meets the SEOC3 standard.

What is the best oil filter for the 2019 GMC Terrain 1.5L 4-cylinder ([V] LYX V Turbo)?

The factory-recommended OEM oil filter for the 2019 GMC Terrain 1.5L 4-cylinder is the GM 25206966. If you prefer a top-tier aftermarket option, the Wix WL10290-EA is an excellent choice.

What is the oil drain plug torque spec for the 2019 GMC Terrain 1.5L 4-cylinder ([V] LYX V Turbo)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2019 GMC Terrain 1.5L 4-cylinder should be tightened to exactly 18 ft/lbs (Oil Drain Plug) and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2019 GMC Terrain 1.5L 4-cylinder ([V] LYX V Turbo)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2019 GMC Terrain 1.5L 4-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2019 GMC Terrain 1.5L 4-cylinder ([V] LYX V Turbo)?

The total engine coolant (antifreeze) capacity for the 2019 GMC Terrain 1.5L 4-cylinder is:

7 quarts

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

1.6L 4-cylinder Engine Code [X] LTG X Turbo

Engine:

1.6L 4-cylinder [X] LTG X Turbo [aka 1.6L L4 (Diesel)]

Body & Trims:

Denali, SL, SLE, SLT

Oil Capacity:

5.3 quarts (with filter)

Oil Viscosity/Type:

SAE 0W-40 (Below -29°C)
SAE 5W-30 (All TEMPS)

OEM Oil Filter:

GM 25206966

Oil Filter Replaces:

12640445, 12683286, 12696048, 12706595, 25206377

2019 GMC Terrain 1.6L 4-cylinder [X] LTG X Turbo oil change details

Oil Grade:

SEOA5

Oil Capacity:

5.3 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.

Oil Viscosity/Type:

SAE 0W-40 (Below -29°C)
SAE 5W-30 (All TEMPS)

Name of Oil Filter:

N/A

Wix Oil Filter:

WL10331-EA

Wix Air Filter:

N/A

Coolant Capacity:

7.9 quarts

Oil Drain Plug Torque:

18 ft/lbs (Oil Drain Plug)

Notes:

For vehicles equipped with diesel engines that originally required General Motors (GM) Dexos2, you may now use a GM Dexos D licensed engine oil of the appropriate viscosity grade.

How much oil does the 2019 GMC Terrain 1.6L 4-cylinder ([X] LTG X Turbo) take?

A complete oil change for the 2019 GMC Terrain 1.6L 4-cylinder (with engine code [X] LTG X Turbo) requires 5.3 quarts (with filter) of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2019 GMC Terrain 1.6L 4-cylinder ([X] LTG X Turbo)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2019 GMC Terrain 1.6L 4-cylinder is using:

SAE 0W-40 (Below -29°C)
SAE 5W-30 (All TEMPS)

Ensure the oil you choose meets the SEOA5 standard.

What is the best oil filter for the 2019 GMC Terrain 1.6L 4-cylinder ([X] LTG X Turbo)?

The factory-recommended OEM oil filter for the 2019 GMC Terrain 1.6L 4-cylinder is the GM 25206966. If you prefer a top-tier aftermarket option, the Wix WL10331-EA is an excellent choice.

What is the oil drain plug torque spec for the 2019 GMC Terrain 1.6L 4-cylinder ([X] LTG X Turbo)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2019 GMC Terrain 1.6L 4-cylinder should be tightened to exactly 18 ft/lbs (Oil Drain Plug) and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2019 GMC Terrain 1.6L 4-cylinder ([X] LTG X Turbo)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2019 GMC Terrain 1.6L 4-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2019 GMC Terrain 1.6L 4-cylinder ([X] LTG X Turbo)?

The total engine coolant (antifreeze) capacity for the 2019 GMC Terrain 1.6L 4-cylinder is:

7.9 quarts

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

2.0L 4-cylinder Engine Code [U] LH7 U Diesel Turbo

Engine:

2.0L 4-cylinder [U] LH7 U Diesel Turbo [aka 2.0L L4 (Gas)]

Body & Trims:

SLE, SLT

Oil Capacity:

6 quarts (with filter) 4WD
5 quarts (with filter) FWD

Oil Viscosity/Type:

SAE 0W-30 (Below -29°C)
SAE 5W-30 (All TEMPS)

OEM Oil Filter:

GM 55588497

Oil Filter Replaces:

N/A

2019 GMC Terrain 2.0L 4-cylinder [U] LH7 U Diesel Turbo oil change details

Oil Grade:

SEOC3

Oil Capacity:

6 quarts. (with filter). For Four-Wheel Drive (4WD) models, this is the capacity with the filter. Always check the oil level after refilling.
5 quarts. (with filter). For Front-Wheel Drive (FWD) models, this is the capacity with the filter. Always check the oil level after refilling.

Oil Viscosity/Type:

SAE 0W-30 (Below -29°C)
SAE 5W-30 (All TEMPS)

Name of Oil Filter:

N/A

Wix Oil Filter:

WL10290-EA

Wix Air Filter:

N/A

Coolant Capacity:

8.2 quarts

Oil Drain Plug Torque:

18 ft/lbs (Oil Drain Plug)

Notes:

This specification has been updated from the Dexos 1 Gen 2 standard to the newer General Motors (GM) Dexos 1 Gen 3 standard.

How much oil does the 2019 GMC Terrain 2.0L 4-cylinder ([U] LH7 U Diesel Turbo) take?

A complete oil change for the 2019 GMC Terrain 2.0L 4-cylinder (with engine code [U] LH7 U Diesel Turbo) requires 6 quarts (with filter) 4WD
5 quarts (with filter) FWD of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2019 GMC Terrain 2.0L 4-cylinder ([U] LH7 U Diesel Turbo)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2019 GMC Terrain 2.0L 4-cylinder is using:

SAE 0W-30 (Below -29°C)
SAE 5W-30 (All TEMPS)

Ensure the oil you choose meets the SEOC3 standard.

What is the best oil filter for the 2019 GMC Terrain 2.0L 4-cylinder ([U] LH7 U Diesel Turbo)?

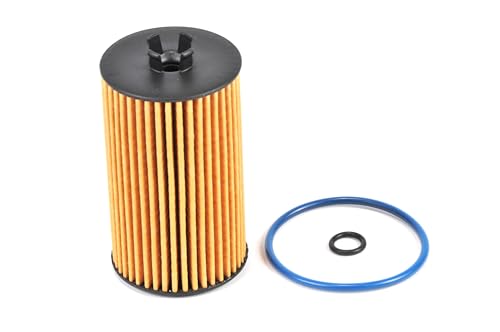

The factory-recommended OEM oil filter for the 2019 GMC Terrain 2.0L 4-cylinder is the GM 55588497. If you prefer a top-tier aftermarket option, the Wix WL10290-EA is an excellent choice.

What is the oil drain plug torque spec for the 2019 GMC Terrain 2.0L 4-cylinder ([U] LH7 U Diesel Turbo)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2019 GMC Terrain 2.0L 4-cylinder should be tightened to exactly 18 ft/lbs (Oil Drain Plug) and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2019 GMC Terrain 2.0L 4-cylinder ([U] LH7 U Diesel Turbo)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2019 GMC Terrain 2.0L 4-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2019 GMC Terrain 2.0L 4-cylinder ([U] LH7 U Diesel Turbo)?

The total engine coolant (antifreeze) capacity for the 2019 GMC Terrain 2.0L 4-cylinder is:

8.2 quarts

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

People also ask – 2019 GMC Terrain

What is the oil capacity of a 2019 GMC Terrain?

Depending on the specific engine option, the 2019 GMC Terrain oil capacity ranges from 5.3 to 645 quarts. Here is the exact oil capacity breakdown for each available engine configuration:

• 1.5L 4-cylinder ([V] LYX V Turbo): 4.2 quarts. (with filter). For Front-Wheel Drive (FWD) models, this is the capacity with the filter. Always check the oil level after refilling.
5.3 quarts. (with filter). For Four-Wheel Drive (4WD) models, this is the capacity with the filter. Always check the oil level after refilling.
• 1.6L 4-cylinder ([X] LTG X Turbo): 5.3 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
• 2.0L 4-cylinder ([U] LH7 U Diesel Turbo): 6 quarts. (with filter). For Four-Wheel Drive (4WD) models, this is the capacity with the filter. Always check the oil level after refilling.
5 quarts. (with filter). For Front-Wheel Drive (FWD) models, this is the capacity with the filter. Always check the oil level after refilling.

Always check your dipstick after refilling to ensure the proper level.

What type of oil does a 2019 GMC Terrain use?

Across its 3 available engine configurations, the 2019 GMC Terrain uses the following motor oil viscosities: SAE 0W-20 (All TEMPS), SAE 0W-40 (Below -29°C)SAE 5W-30 (All TEMPS) and SAE 0W-30 (Below -29°C)SAE 5W-30 (All TEMPS). Using the correct manufacturer-approved oil weight is crucial for engine health. Here are the specific oil type requirements by engine:

• 1.5L 4-cylinder ([V] LYX V Turbo):
Grade: SEOC3
SAE 0W-20 (All TEMPS)

• 1.6L 4-cylinder ([X] LTG X Turbo):
Grade: SEOA5
SAE 0W-40 (Below -29°C)
SAE 5W-30 (All TEMPS)

• 2.0L 4-cylinder ([U] LH7 U Diesel Turbo):
Grade: SEOC3
SAE 0W-30 (Below -29°C)
SAE 5W-30 (All TEMPS)

What is the best oil filter for the 2019 GMC Terrain?

The proper oil filter depends on your exact engine code. The 2019 GMC Terrain utilizes the following premium aftermarket Wix oil filters across its lineup: WL10290-EA and WL10331-EA. Here is the specific OEM and aftermarket filter data for each engine:

• 1.5L 4-cylinder ([V] LYX V Turbo):
OEM Filter: GM 25206966
Wix Filter: WL10290-EA

• 1.6L 4-cylinder ([X] LTG X Turbo):
OEM Filter: GM 25206966
Wix Filter: WL10331-EA

• 2.0L 4-cylinder ([U] LH7 U Diesel Turbo):
OEM Filter: GM 55588497
Wix Filter: WL10290-EA

How often should I change the oil in my 2019 GMC Terrain?

For modern models running full synthetic oil, oil change intervals are typically every 7,500 to 10,000 miles. However, for older GMC Terrain generations (1985-2010) or those using conventional/synthetic-blend fluid, changing the oil and filter every 3,000 to 5,000 miles is highly recommended to prevent sludge buildup. Regardless of engine (1.5L 4-cylinder, 1.6L 4-cylinder and 2.0L 4-cylinder), you should change your oil at least once a year even if you don’t reach the mileage limit.
