2017 Ford Mustang Oil Capacity, Types, & Filters

Your ultimate DIY maintenance guide for the 2017 Ford Mustang oil change is here! No more searching – find all the critical oil specs for your 2017 Ford Mustang, including exact engine oil capacity, the manufacturer recommended oil viscosity and type, and the correct OEM and aftermarket oil filters.

We cover all available engine options categorized by their specific engine codes, ensuring you get pinpoint accuracy for your specific vehicle configuration. Keep reading to discover everything required for a successful 2017 Ford Mustang oil change!

Scroll Table ➜

Engine & Code	Oil Capacity	Oil Viscosity/Type	Oil Filter
2.3L 4-cylinder [Z] 99Z Z	5.7 quarts (with filter)	SAE 5W-30 (Above -29°C)	Ford FL-2062-A Ford FL-2069-ST Ford FL-2087-A
3.7L 6-cylinder [M] 99M M	6 quarts (with filter)	SAE 5W-20 (Above -29°C)	Ford FL-500-S
5.0L 8-cylinder [F] 99F F	8 quarts (with filter)	SAE 5W-20 (Above -29°C)	Ford FL-500-S
5.2L 8-cylinder [H] 99H H Turbo	10 quarts (with filter)	5W-50 (All TEMPS)	Ford FL-910S

Select Your 2017 Ford Mustang Engine Option

2.3L 4-cylinder Engine Code [Z] 99Z Z

Engine:

2.3L 4-cylinder [Z] 99Z Z [aka 2.3L L4 (Gas)]

Body & Trims:

Shelby GT350, Shelby GT350R

Oil Capacity:

5.7 quarts (with filter)

Oil Viscosity/Type:

SAE 5W-30 (Above -29°C)

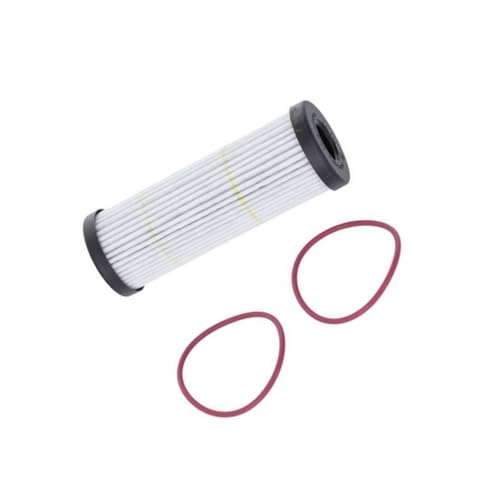

OEM Oil Filter:

Ford FL-2062-A, Ford FL-2069-ST and Ford FL-2087-A

Oil Filter Replaces:

FT4Z-6731-A

2017 Ford Mustang 2.3L 4-cylinder [Z] 99Z Z oil change details

Oil Grade:

SEO19

Oil Capacity:

5.7 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.

Oil Viscosity/Type:

SAE 5W-30 (Above -29°C) - To improve starting in extreme cold climates where the ambient temperature is -30°C (-22°F) or below, use SAE 0W-30 oil meeting specification WSS-M2C963-A1.

Name of Oil Filter:

N/A

Wix Oil Filter:

51348-EA

Wix Air Filter:

N/A

Coolant Capacity:

9.5 quarts

Oil Drain Plug Torque:

20 ft/lbs (Oil Drain Plug)

Notes:

N/A

How much oil does the 2017 Ford Mustang 2.3L 4-cylinder ([Z] 99Z Z) take?

A complete oil change for the 2017 Ford Mustang 2.3L 4-cylinder (with engine code [Z] 99Z Z) requires 5.7 quarts (with filter) of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2017 Ford Mustang 2.3L 4-cylinder ([Z] 99Z Z)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2017 Ford Mustang 2.3L 4-cylinder is using:

SAE 5W-30 (Above -29°C)

Ensure the oil you choose meets the SEO19 standard.

What is the best oil filter for the 2017 Ford Mustang 2.3L 4-cylinder ([Z] 99Z Z)?

The factory-recommended OEM oil filter for the 2017 Ford Mustang 2.3L 4-cylinder is the Ford FL-2062-A, Ford FL-2069-ST or Ford FL-2087-A. If you prefer a top-tier aftermarket option, the Wix 51348-EA is an excellent choice.

What is the oil drain plug torque spec for the 2017 Ford Mustang 2.3L 4-cylinder ([Z] 99Z Z)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2017 Ford Mustang 2.3L 4-cylinder should be tightened to exactly 20 ft/lbs (Oil Drain Plug) and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2017 Ford Mustang 2.3L 4-cylinder ([Z] 99Z Z)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2017 Ford Mustang 2.3L 4-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2017 Ford Mustang 2.3L 4-cylinder ([Z] 99Z Z)?

The total engine coolant (antifreeze) capacity for the 2017 Ford Mustang 2.3L 4-cylinder is:

9.5 quarts

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

3.7L 6-cylinder Engine Code [M] 99M M

Engine:

3.7L 6-cylinder [M] 99M M [aka 3.7L V6 (Gas)]

Body & Trims:

GT, GT Premium, V6

Oil Capacity:

6 quarts (with filter)

Oil Viscosity/Type:

SAE 5W-20 (Above -29°C)

OEM Oil Filter:

Ford FL-500-S

Oil Filter Replaces:

BU2Z-6731-A

2017 Ford Mustang 3.7L 6-cylinder [M] 99M M oil change details

Oil Grade:

SEO18

Oil Capacity:

6 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.

Oil Viscosity/Type:

SAE 5W-20 (Above -29°C) - To improve engine starting in extremely cold climates where the ambient temperature is -30°C (-22°F) or below, use SAE 0W-20 oil that meets specification WSS-M2C947-A.

Name of Oil Filter:

N/A

Wix Oil Filter:

57502-EA

Wix Air Filter:

N/A

Coolant Capacity:

12.4 quarts

Oil Drain Plug Torque:

20 ft/lbs (Oil Drain Plug)

Notes:

N/A

How much oil does the 2017 Ford Mustang 3.7L 6-cylinder ([M] 99M M) take?

A complete oil change for the 2017 Ford Mustang 3.7L 6-cylinder (with engine code [M] 99M M) requires 6 quarts (with filter) of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2017 Ford Mustang 3.7L 6-cylinder ([M] 99M M)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2017 Ford Mustang 3.7L 6-cylinder is using:

SAE 5W-20 (Above -29°C)

Ensure the oil you choose meets the SEO18 standard.

What is the best oil filter for the 2017 Ford Mustang 3.7L 6-cylinder ([M] 99M M)?

The factory-recommended OEM oil filter for the 2017 Ford Mustang 3.7L 6-cylinder is the Ford FL-500-S. If you prefer a top-tier aftermarket option, the Wix 57502-EA is an excellent choice.

What is the oil drain plug torque spec for the 2017 Ford Mustang 3.7L 6-cylinder ([M] 99M M)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2017 Ford Mustang 3.7L 6-cylinder should be tightened to exactly 20 ft/lbs (Oil Drain Plug) and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2017 Ford Mustang 3.7L 6-cylinder ([M] 99M M)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2017 Ford Mustang 3.7L 6-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2017 Ford Mustang 3.7L 6-cylinder ([M] 99M M)?

The total engine coolant (antifreeze) capacity for the 2017 Ford Mustang 3.7L 6-cylinder is:

12.4 quarts

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

5.0L 8-cylinder Engine Code [F] 99F F

Engine:

5.0L 8-cylinder [F] 99F F [aka 5.0L V8 (Gas)]

Body & Trims:

GT, GT Premium, V6

Oil Capacity:

8 quarts (with filter)

Oil Viscosity/Type:

SAE 5W-20 (Above -29°C)

OEM Oil Filter:

Ford FL-500-S

Oil Filter Replaces:

BU2Z-6731-A

2017 Ford Mustang 5.0L 8-cylinder [F] 99F F oil change details

Oil Grade:

SEO18

Oil Capacity:

8 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.

Oil Viscosity/Type:

Name of Oil Filter:

N/A

Wix Oil Filter:

57502-EA

Wix Air Filter:

N/A

Coolant Capacity:

15.2 quarts - For models with the Track Package.
13.6 quarts - For models WithOut the Track Package.

Oil Drain Plug Torque:

19 ft/lbs (Oil Drain Plug)

Notes:

N/A

How much oil does the 2017 Ford Mustang 5.0L 8-cylinder ([F] 99F F) take?

A complete oil change for the 2017 Ford Mustang 5.0L 8-cylinder (with engine code [F] 99F F) requires 8 quarts (with filter) of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2017 Ford Mustang 5.0L 8-cylinder ([F] 99F F)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2017 Ford Mustang 5.0L 8-cylinder is using:

SAE 5W-20 (Above -29°C)

Ensure the oil you choose meets the SEO18 standard.

What is the best oil filter for the 2017 Ford Mustang 5.0L 8-cylinder ([F] 99F F)?

The factory-recommended OEM oil filter for the 2017 Ford Mustang 5.0L 8-cylinder is the Ford FL-500-S. If you prefer a top-tier aftermarket option, the Wix 57502-EA is an excellent choice.

What is the oil drain plug torque spec for the 2017 Ford Mustang 5.0L 8-cylinder ([F] 99F F)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2017 Ford Mustang 5.0L 8-cylinder should be tightened to exactly 19 ft/lbs (Oil Drain Plug) and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2017 Ford Mustang 5.0L 8-cylinder ([F] 99F F)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2017 Ford Mustang 5.0L 8-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2017 Ford Mustang 5.0L 8-cylinder ([F] 99F F)?

The total engine coolant (antifreeze) capacity for the 2017 Ford Mustang 5.0L 8-cylinder is:

15.2 quarts - For models with the Track Package.
13.6 quarts - For models WithOut the Track Package.

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

5.2L 8-cylinder Engine Code [H] 99H H Turbo

Engine:

5.2L 8-cylinder [H] 99H H Turbo [aka 5.2L V8 (Gas)]

Body & Trims:

EcoBoost, EcoBoost Premium

Oil Capacity:

10 quarts (with filter)

Oil Viscosity/Type:

5W-50 (All TEMPS)

OEM Oil Filter:

Ford FL-910S

Oil Filter Replaces:

1S7Z-6731-DA, FL-793

2017 Ford Mustang 5.2L 8-cylinder [H] 99H H Turbo oil change details

Oil Grade:

SEO52

Oil Capacity:

10 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.

Oil Viscosity/Type:

5W-50 (All TEMPS)

Name of Oil Filter:

N/A

Wix Oil Filter:

N/A

Wix Air Filter:

N/A

Coolant Capacity:

15.2 quarts

Oil Drain Plug Torque:

N/A

Notes:

N/A

How much oil does the 2017 Ford Mustang 5.2L 8-cylinder ([H] 99H H Turbo) take?

A complete oil change for the 2017 Ford Mustang 5.2L 8-cylinder (with engine code [H] 99H H Turbo) requires 10 quarts (with filter) of engine oil. To ensure safety and performance, always verify the level on the dipstick after refilling.

What type of oil is recommended for the 2017 Ford Mustang 5.2L 8-cylinder ([H] 99H H Turbo)?

For optimal engine longevity, the manufacturer recommended motor oil for the 2017 Ford Mustang 5.2L 8-cylinder is using:

5W-50 (All TEMPS)

Ensure the oil you choose meets the SEO52 standard.

What is the best oil filter for the 2017 Ford Mustang 5.2L 8-cylinder ([H] 99H H Turbo)?

The factory-recommended OEM oil filter for the 2017 Ford Mustang 5.2L 8-cylinder is the Ford FL-910S. If you prefer a top-tier aftermarket option, the Wix or other equivalent found in oil filter cross-reference catalog for this trim is an excellent choice.

What is the oil drain plug torque spec for the 2017 Ford Mustang 5.2L 8-cylinder ([H] 99H H Turbo)?

To prevent leaks or stripped oil pan threads, the drain plug on the 2017 Ford Mustang 5.2L 8-cylinder should be tightened to exactly the factory specified ft-lbs and we also recommend installing a new crush washer with every oil change.

What is the correct air filter for the 2017 Ford Mustang 5.2L 8-cylinder ([H] 99H H Turbo)?

For optimal engine performance and clean airflow, the recommended engine air filter replacement for the 2017 Ford Mustang 5.2L 8-cylinder is the Wix or other equivalent found in air filter cross-reference catalog for this trim compatible with your intake system. It is a good maintenance habit to inspect this filter during every oil change.

What is the coolant capacity for the 2017 Ford Mustang 5.2L 8-cylinder ([H] 99H H Turbo)?

The total engine coolant (antifreeze) capacity for the 2017 Ford Mustang 5.2L 8-cylinder is:

15.2 quarts

Always ensure you use the manufacturer-approved coolant color and type to prevent internal corrosion.

People also ask – 2017 Ford Mustang

What is the oil capacity of a 2017 Ford Mustang?

Depending on the specific engine option, the 2017 Ford Mustang oil capacity ranges from 5.7 to 10 quarts. Here is the exact oil capacity breakdown for each available engine configuration:

• 2.3L 4-cylinder ([Z] 99Z Z): 5.7 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
• 3.7L 6-cylinder ([M] 99M M): 6 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
• 5.0L 8-cylinder ([F] 99F F): 8 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
• 5.2L 8-cylinder ([H] 99H H Turbo): 10 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.

Always check your dipstick after refilling to ensure the proper level.

What type of oil does a 2017 Ford Mustang use?

Across its 4 available engine configurations, the 2017 Ford Mustang uses the following motor oil viscosities: SAE 5W-30 (Above -29°C), SAE 5W-20 (Above -29°C) and 5W-50 (All TEMPS). Using the correct manufacturer-approved oil weight is crucial for engine health. Here are the specific oil type requirements by engine:

• 2.3L 4-cylinder ([Z] 99Z Z):
Grade: SEO19
SAE 5W-30 (Above -29°C) - To improve starting in extreme cold climates where the ambient temperature is -30°C (-22°F) or below, use SAE 0W-30 oil meeting specification WSS-M2C963-A1.

• 3.7L 6-cylinder ([M] 99M M):
Grade: SEO18
SAE 5W-20 (Above -29°C) - To improve engine starting in extremely cold climates where the ambient temperature is -30°C (-22°F) or below, use SAE 0W-20 oil that meets specification WSS-M2C947-A.

• 5.0L 8-cylinder ([F] 99F F):
Grade: SEO18
SAE 5W-20 (Above -29°C) - To improve engine starting in extremely cold climates where the ambient temperature is -30°C (-22°F) or below, use SAE 0W-20 oil that meets specification WSS-M2C947-A.

• 5.2L 8-cylinder ([H] 99H H Turbo):
Grade: SEO52
5W-50 (All TEMPS)

What is the best oil filter for the 2017 Ford Mustang?

The proper oil filter depends on your exact engine code. The 2017 Ford Mustang utilizes the following premium aftermarket Wix oil filters across its lineup: 51348-EA and 57502-EA. Here is the specific OEM and aftermarket filter data for each engine:

• 2.3L 4-cylinder ([Z] 99Z Z):
OEM Filter: Ford FL-2062-A, Ford FL-2069-ST or Ford FL-2087-A
Wix Filter: 51348-EA

• 3.7L 6-cylinder ([M] 99M M):
OEM Filter: Ford FL-500-S
Wix Filter: 57502-EA

• 5.0L 8-cylinder ([F] 99F F):
OEM Filter: Ford FL-500-S
Wix Filter: 57502-EA

• 5.2L 8-cylinder ([H] 99H H Turbo):
OEM Filter: Ford FL-910S
Wix Filter: Check Cross-reference Catalog

How often should I change the oil in my 2017 Ford Mustang?

For modern models running full synthetic oil, oil change intervals are typically every 7,500 to 10,000 miles. However, for older Ford Mustang generations (1985-2010) or those using conventional/synthetic-blend fluid, changing the oil and filter every 3,000 to 5,000 miles is highly recommended to prevent sludge buildup. Regardless of engine (2.3L 4-cylinder, 3.7L 6-cylinder, 5.0L 8-cylinder and 5.2L 8-cylinder), you should change your oil at least once a year even if you don’t reach the mileage limit.
