2016 Volvo V60 Oil Capacity, Types, & Filters
Your essential guide to 2016 Volvo V60 oil change is here! No more searching – find all the critical oil specs for your 2016 Volvo V60, including oil capacity, recommended oil viscosity (type), and the correct oil filter.
We cover all engine options, categorized by their specific engine codes, ensuring you get the right information for your specific configuration. Keep reading to discover everything you need for your next 2016 Volvo V60 oil change!
Scroll Table ➜
| Engine & Code | Oil Capacity | Oil Viscosity/Type | Oil Filter |
|---|---|---|---|

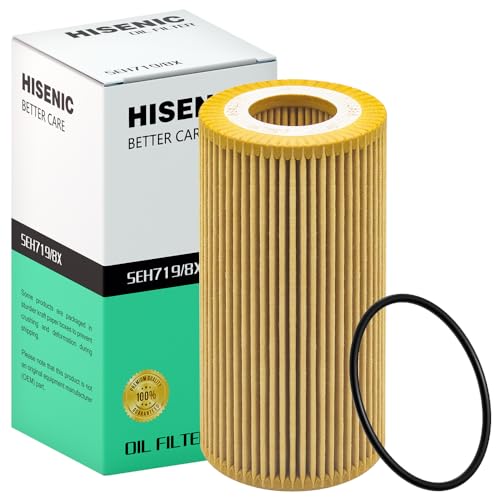

| 2.0L 4-cylinder [61] B5254T1 4 Turbo | 5.7 quarts (with filter) | SAE 0W-20 (All TEMPS) | Volvo 31338685 Volvo 8692305 |

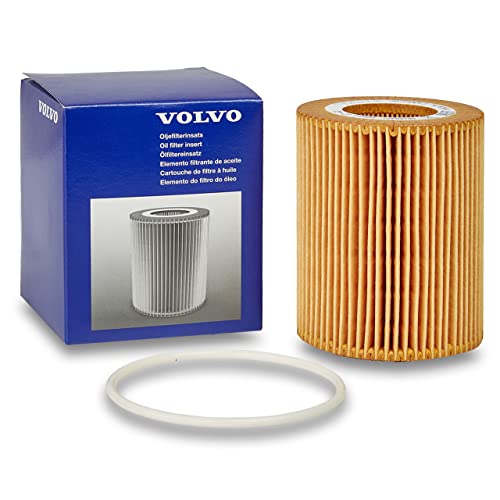

| 2.0L 4-cylinder [90] B6304T4 5 Turbo | 6.2 quarts (with filter) | SAE 0W-20 (All TEMPS) | Volvo 30750013 |
| 2.5L 5-cylinder [A9] B6304T5 0 Turbo | 5.8 quarts (with filter) | SAE 0W-30 (Below 40°C) SAE 5W-30 (-30 To 40°C) | Volvo 30750013 |

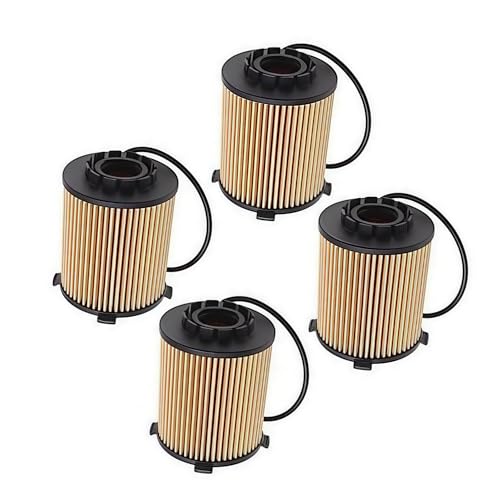

| 3.0L 6-cylinder [40] B4204T1 Z Turbo | 7.2 quarts (with filter) | SAE 0W-30 (Below 40°C) SAE 5W-30 (-30 To 40°C) | Volvo 32140029 |
| 3.0L 6-cylinder [49] B4204T9 A Turbo | 7.2 quarts (with filter) | SAE 0W-30 (Below 40°C) SAE 5W-30 (-30 To 40°C) | Volvo 32140029 |
Select Your 2016 Volvo V60 Engine Option
2.0L 4-cylinder Engine Code [61] B5254T1 4 Turbo
Engine:
2.0L 4-cylinder [61] B5254T1 4 Turbo [aka 2.0L L4 (Gas)]
Body & Trims:
T5 Platinum, T5 Premier
Oil Capacity:
5.7 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-20 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
30684381, 30788494, 31338684
2016 Volvo V60 2.0L 4-cylinder [61] B5254T1 4 Turbo oil change details
Oil Grade:
SEOA4
Oil Capacity:
5.7 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-20 (All TEMPS) - This recommendation has been updated per Volvo Service Management Bulletin (SMB) SMB-005 SMB22-005-2020-01-23.
Oil Drain Plug Torque:
28 ft/lbs (Oil Drain Plug)
Notes:
It is required that you use a synthetic engine oil.
2.0L 4-cylinder Engine Code [90] B6304T4 5 Turbo
Engine:
2.0L 4-cylinder [90] B6304T4 5 Turbo [aka 2.0L L4 (Gas)]
Body & Trims:
T6 Polestar, T6 R-Design, T6 R-Design Platinum
Oil Capacity:
6.2 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-20 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
N/A
2016 Volvo V60 2.0L 4-cylinder [90] B6304T4 5 Turbo oil change details
Oil Grade:
SEOA4
Oil Capacity:
6.2 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-20 (All TEMPS) - This recommendation has been updated per Volvo Service Management Bulletin (SMB) SMB-005 SMB22-005-2020-01-23.
Oil Drain Plug Torque:
28 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
It is required that you use a synthetic engine oil.
2.5L 5-cylinder Engine Code [A9] B6304T5 0 Turbo
Engine:
2.5L 5-cylinder [A9] B6304T5 0 Turbo [aka 2.5L L5 (Gas)]
Body & Trims:
T6 Polestar, T6 R-Design, T6 R-Design Platinum
Oil Capacity:
5.8 quarts (with filter)
OEM Oil Filter:
Oil Filter Replaces:
N/A
2016 Volvo V60 2.5L 5-cylinder [A9] B6304T5 0 Turbo oil change details
Oil Grade:
SEO01
Oil Capacity:
5.8 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
9.4 quarts
Oil Drain Plug Torque:
37 ft/lbs (Oil Drain Plug)
Notes:
It is required that you use a synthetic engine oil.
3.0L 6-cylinder Engine Code [40] B4204T1 Z Turbo
Engine:
3.0L 6-cylinder [40] B4204T1 Z Turbo [aka 3.0L L6 (Gas)]
Body & Trims:
T5, T5 Platinum, T5 Premier, T6 R-Design, T6 R-Design Platinum
Oil Capacity:
7.2 quarts (with filter)
OEM Oil Filter:
Oil Filter Replaces:
31372212
2016 Volvo V60 3.0L 6-cylinder [40] B4204T1 Z Turbo oil change details
Oil Grade:
SEO01
Oil Capacity:
7.2 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
9.4 quarts
Oil Drain Plug Torque:
28 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
It is required that you use a synthetic engine oil.
3.0L 6-cylinder Engine Code [49] B4204T9 A Turbo
Engine:
3.0L 6-cylinder [49] B4204T9 A Turbo [aka 3.0L L6 (Gas)]
Body & Trims:
T5, T5 Platinum, T5 Premier, T6 R-Design, T6 R-Design Platinum
Oil Capacity:
7.2 quarts (with filter)
OEM Oil Filter:
Oil Filter Replaces:
31372212
2016 Volvo V60 3.0L 6-cylinder [49] B4204T9 A Turbo oil change details
Oil Grade:
SEO01
Oil Capacity:
7.2 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
9.4 quarts
Oil Drain Plug Torque:
B6304T4 - 28 ft/lbs (Oil Drain Plug)
Notes:
It is required that you use a synthetic engine oil.
