2016 BMW X5 Oil Capacity, Types, & Filters
Your essential guide to 2016 BMW X5 oil change is here! No more searching – find all the critical oil specs for your 2016 BMW X5, including oil capacity, recommended oil viscosity (type), and the correct oil filter.
We cover all engine options, categorized by their specific engine codes, ensuring you get the right information for your specific configuration. Keep reading to discover everything you need for your next 2016 BMW X5 oil change!
Scroll Table ➜
| Engine & Code | Oil Capacity | Oil Viscosity/Type | Oil Filter |
|---|---|---|---|
| 2.0L 4-cylinder N63B44B 4 Turbo | 5 quarts (with filter) | SAE 0W-20 (All TEMPS) | BMW 11-42-7-583-220 BMW 11-42-7-848-321 |
| 3.0L 6-cylinder S63R 7 Turbo | 6.9 quarts (with filter) | SAE 0W-30 (All TEMPS) | BMW 11-42-7-583-220 BMW 11-42-7-848-321 |
| 3.0L 6-cylinder N20B20A D Turbo | 6.9 quarts (with filter) | SAE 0W-30 (All TEMPS) | BMW 11-42-7-953-129 |
| 3.0L 6-cylinder N55B30A 3 Turbo | 6.9 quarts (with filter) | SAE 0W-30 (All TEMPS) | BMW 11-42-7-953-129 |
| 3.0L 6-cylinder N57D30T H Diesel Turbo | 6.9 quarts (with filter) | SAE 0W-30 (All TEMPS) | BMW 11-42-7-953-129 |

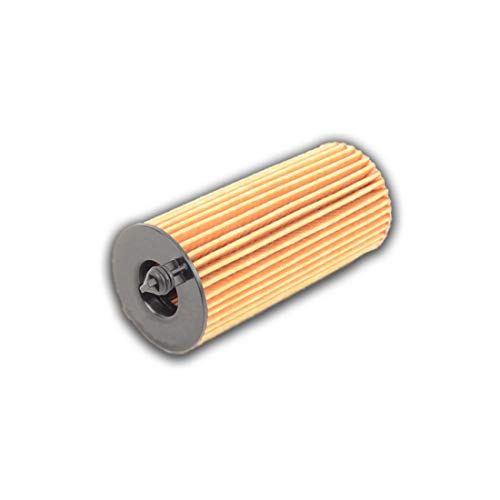

| 4.4L 8-cylinder N55B30A 3 Turbo | 10 quarts (with filter) | SAE 0W-30 (All TEMPS) | BMW 11-42-8-507-683 |
| 4.4L 8-cylinder N57D30T H Diesel Turbo | 10 quarts (with filter) | SAE 0W-30 (All TEMPS) | BMW 11-42-8-507-683 |
Select Your 2016 BMW X5 Engine Option
2.0L 4-cylinder Engine Code N63B44B 4 Turbo
Engine:
2.0L 4-cylinder N63B44B 4 Turbo [aka 2.0L L4 (Electric/Gas)]
Body & Trims:
xDrive50i
Oil Capacity:
5 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-20 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
11-42-7-600-089
2016 BMW X5 2.0L 4-cylinder N63B44B 4 Turbo oil change details
Oil Grade:
SEOA8
Oil Capacity:
5 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-20 (All TEMPS)
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
12.5 quarts - This is the capacity for the High Temperature Cooling Circuit (HTCC).
2.9 quarts - This is the capacity for the Low Temperature Cooling Circuit (LTCC).
Oil Drain Plug Torque:
AWD - 18 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
RWD - 6 ft/lbs (Oil Drain Plug). Replace the oil drain plug. If the new plug doesn't latch after tightening it to the correct torque, you'll need to adjust its position until the latch mechanism is properly aligned.
Notes:
N/A
3.0L 6-cylinder Engine Code S63R 7 Turbo
Engine:
3.0L 6-cylinder S63R 7 Turbo [aka 3.0L L6 (Diesel)]
Body & Trims:
xDrive50i
Oil Capacity:
6.9 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
11-42-7-600-089
2016 BMW X5 3.0L 6-cylinder S63R 7 Turbo oil change details
Oil Grade:
SEO68
Oil Capacity:
6.9 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
10.9 quarts
Oil Drain Plug Torque:
18 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
N/A
3.0L 6-cylinder Engine Code N20B20A D Turbo
Engine:
3.0L 6-cylinder N20B20A D Turbo [aka 3.0L L6 (Diesel)]
Body & Trims:
sDrive35i, xDrive35i, xDrive40e
Oil Capacity:
6.9 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
11-42-7-541-827, 11-42-7-566-327, 11-42-8-683-196
2016 BMW X5 3.0L 6-cylinder N20B20A D Turbo oil change details
Oil Grade:
SEO70
Oil Capacity:
6.9 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
13.3 quarts
Oil Drain Plug Torque:
18 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
N/A
3.0L 6-cylinder Engine Code N55B30A 3 Turbo
Engine:
3.0L 6-cylinder N55B30A 3 Turbo [aka 3.0L L6 (Gas)]
Body & Trims:
sDrive35i, xDrive35i, xDrive40e
Oil Capacity:
6.9 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
11-42-7-541-827, 11-42-7-566-327, 11-42-8-683-196
2016 BMW X5 3.0L 6-cylinder N55B30A 3 Turbo oil change details
Oil Grade:
SEO68
Oil Capacity:
6.9 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
10.9 quarts
Oil Drain Plug Torque:
18 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
N/A
3.0L 6-cylinder Engine Code N57D30T H Diesel Turbo
Engine:
3.0L 6-cylinder N57D30T H Diesel Turbo [aka 3.0L L6 (Gas)]
Body & Trims:
sDrive35i, xDrive35i, xDrive40e
Oil Capacity:
6.9 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
11-42-7-541-827, 11-42-7-566-327, 11-42-8-683-196
2016 BMW X5 3.0L 6-cylinder N57D30T H Diesel Turbo oil change details
Oil Grade:
SEO70
Oil Capacity:
6.9 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
13.3 quarts
Oil Drain Plug Torque:
18 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
N/A
4.4L 8-cylinder Engine Code N55B30A 3 Turbo
Engine:
4.4L 8-cylinder N55B30A 3 Turbo [aka 4.4L V8 (Gas)]
Body & Trims:
xDrive35d
Oil Capacity:
10 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
N/A
2016 BMW X5 4.4L 8-cylinder N55B30A 3 Turbo oil change details
Oil Grade:
SEO68
Oil Capacity:
10 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
Oil Drain Plug Torque:
18 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
N/A
4.4L 8-cylinder Engine Code N57D30T H Diesel Turbo
Engine:
4.4L 8-cylinder N57D30T H Diesel Turbo [aka 4.4L V8 (Gas)]
Body & Trims:
xDrive35d
Oil Capacity:
10 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
OEM Oil Filter:
Oil Filter Replaces:
N/A
2016 BMW X5 4.4L 8-cylinder N57D30T H Diesel Turbo oil change details
Oil Grade:
SEO68
Oil Capacity:
10 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-30 (All TEMPS)
Oil Drain Plug Torque:
15 ft/lbs (Oil Drain Plug). Always replace the drain plug seal with a new one.
Notes:
N/A
