2009 Toyota Highlander Oil Capacity, Types, & Filters
Your essential guide to 2009 Toyota Highlander oil change is here! No more searching – find all the critical oil specs for your 2009 Toyota Highlander, including oil capacity, recommended oil viscosity (type), and the correct oil filter.
We cover all engine options, categorized by their specific engine codes, ensuring you get the right information for your specific configuration. Keep reading to discover everything you need for your next 2009 Toyota Highlander oil change!
Scroll Table ➜
| Engine & Code | Oil Capacity | Oil Viscosity/Type | Oil Filter |
|---|---|---|---|
| 2.7L 4-cylinder 1AR-FE 7 | 5 quarts (with filter) | SAE 0W-20, SAE 5W-20 (All TEMPS) | Toyota PTR43-00082 Toyota PTR43-33010 Toyota 04152-YZZA1 Toyota PTR43-00080 |
| 3.3L 6-cylinder 2GRFE A | 5 quarts (with filter) | SAE 0W-20, SAE 5W-20 (All TEMPS) | Toyota PTR43-00082 Toyota PTR43-33010 Toyota 04152-YZZA1 Toyota PTR43-00080 |
| 3.5L 6-cylinder 3MZ-FE G | 6.4 quarts (with filter) | SAE 5W-20 (All TEMPS) SAE 5W-30 (All TEMPS) | Toyota PTR43-00082 Toyota PTR43-33010 Toyota 90915-YZZD1 |
Select Your 2009 Toyota Highlander Engine Option
2.7L 4-cylinder Engine Code 1AR-FE 7
Engine:
2.7L 4-cylinder 1AR-FE 7 [aka 2.7L L4 (Gas)]
Body & Trims:
Base, Hybrid, Hybrid Limited, Limited, Sport
Oil Capacity:
5 quarts (with filter)
OEM Oil Filter:

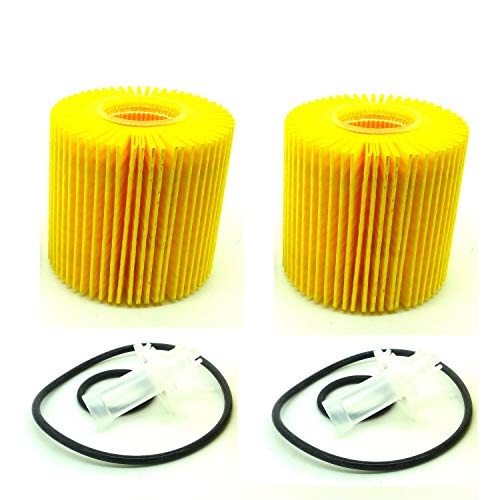

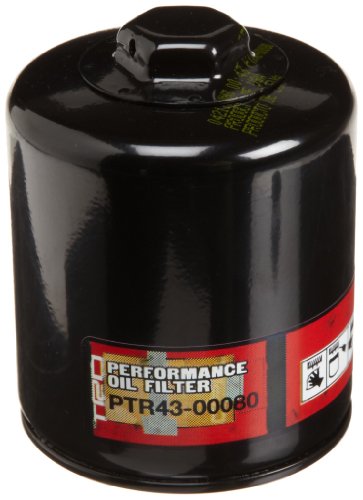

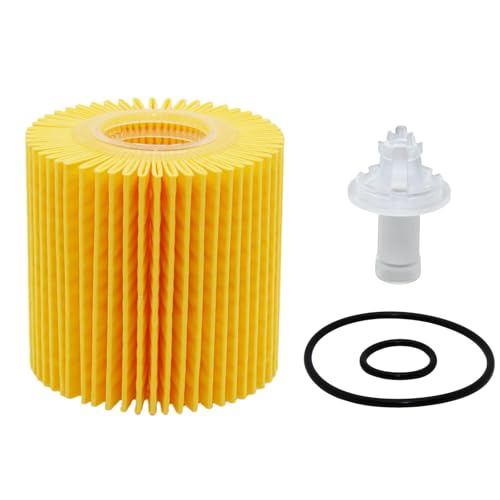

Toyota PTR43-00082, Toyota PTR43-33010, Toyota 04152-YZZA1 and Toyota PTR43-00080
Oil Filter Replaces:
PT901-90915-06, PTR14-00000-06, 04152-0V010, 04152-31090, 04152-31110 and PT901-90915-04, PTR14-00000-04
2009 Toyota Highlander 2.7L 4-cylinder 1AR-FE 7 oil change details
Oil Grade:
API*
Oil Capacity:
5 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
Wix Air Filter:
Coolant Capacity:
7.3 quarts - For models WithOut rear Air Conditioning (RR AC) and WithOut the Tow Package (PKG).
8 quarts - For models WithOut rear Air Conditioning (RR AC) but with a Twin Turbo (TT).
9.6 quarts - For models with rear Air Conditioning (AC) and WithOut the Tow Package (PKG).
10.4 quarts - For models with rear Air Conditioning (AC) and With the Tow Package (PKG).
Oil Drain Plug Torque:
30 ft/lbs (Oil Drain Plug)
Notes:
N/A
3.3L 6-cylinder Engine Code 2GRFE A
Engine:
3.3L 6-cylinder 2GRFE A [aka 3.3L V6 (Electric/Gas)]
Body & Trims:
Base, Hybrid, Hybrid Limited, Limited, Sport
Oil Capacity:
5 quarts (with filter)
OEM Oil Filter:
Toyota PTR43-00082, Toyota PTR43-33010, Toyota 04152-YZZA1 and Toyota PTR43-00080
Oil Filter Replaces:
PT901-90915-06, PTR14-00000-06, 04152-0V010, 04152-31090, 04152-31110 and PT901-90915-04, PTR14-00000-04
2009 Toyota Highlander 3.3L 6-cylinder 2GRFE A oil change details
Oil Grade:
API*
Oil Capacity:
5 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
Wix Air Filter:
N/A
Coolant Capacity:
13.5 quarts - For models with rear Air Conditioning (AC).
11.2 quarts - For models WithOut rear Air Conditioning (AC).
3.6 quarts - This capacity is for the Power Control Unit.
Oil Drain Plug Torque:
33 ft/lbs (Oil Drain Plug)
Notes:
N/A
3.5L 6-cylinder Engine Code 3MZ-FE G
Engine:
3.5L 6-cylinder 3MZ-FE G [aka 3.5L V6 (Gas)]
Body & Trims:
Base, Hybrid, Hybrid Limited, Limited, Sport
Oil Capacity:
6.4 quarts (with filter)
OEM Oil Filter:
Toyota PTR43-00082, Toyota PTR43-33010 and Toyota 90915-YZZD1
Oil Filter Replaces:
PT901-90915-06, PTR14-00000-06 and 08922-02004, 08922-02010, 08922-02011, 15600-25010, 90915-03002, 90915-20001, 90915-20003, 90915-20005, 90915-YZZB1, 90915-YZZB9, 90915-YZZG1, 90915-YZZG2
2009 Toyota Highlander 3.5L 6-cylinder 3MZ-FE G oil change details
Oil Grade:
API*
Oil Capacity:
6.4 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
Wix Air Filter:
Coolant Capacity:
11.6 quarts - For models with rear Air Conditioning (AC) and WithOut the Tow Package (PKG).
12.4 quarts - For models with rear Air Conditioning (AC) and With the Tow Package (PKG).
10 quarts - For models WithOut rear Air Conditioning (RR AC) and WithOut a Twin Turbo (TT).
9.3 quarts - For models WithOut rear Air Conditioning (RR AC) and WithOut the Tow Package (PKG).
Oil Drain Plug Torque:
30 ft/lbs (Oil Drain Plug)
Notes:
N/A
