2004 Volkswagen Touareg Oil Capacity, Types, & Filters
Your essential guide to 2004 Volkswagen Touareg oil change is here! No more searching – find all the critical oil specs for your 2004 Volkswagen Touareg, including oil capacity, recommended oil viscosity (type), and the correct oil filter.
We cover all engine options, categorized by their specific engine codes, ensuring you get the right information for your specific configuration. Keep reading to discover everything you need for your next 2004 Volkswagen Touareg oil change!
Scroll Table ➜
| Engine & Code | Oil Capacity | Oil Viscosity/Type | Oil Filter |
|---|---|---|---|

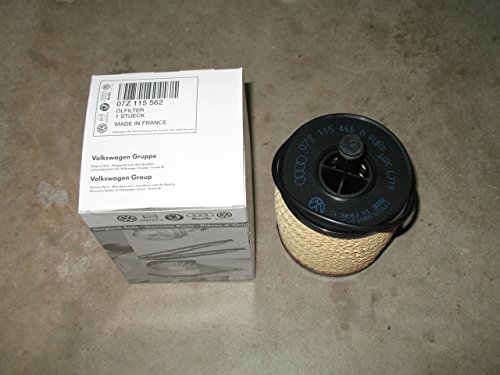

| 3.2L 6-cylinder BKW Y Diesel Turbo | 6.7 quarts (with filter) | SAE 5W-40, SAE 5W-30 (All TEMPS) | Volkswagen 07Z-115-562 Volkswagen 07Z-115-389-H |
| 4.2L 8-cylinder BAA V | 8 quarts (with filter) | SAE 5W-40, SAE 5W-30 (All TEMPS) | Volkswagen 021-115-562-A |

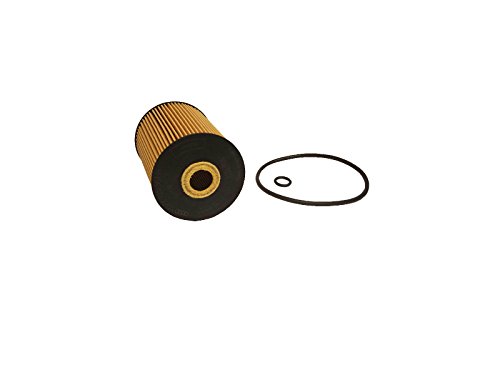

| 4.9L 10-cyl AXQ U | 12.2 quarts (with filter) | SAE 5W-40, SAE 5W-30 (All TEMPS) | Volkswagen 077-115-562 |
Select Your 2004 Volkswagen Touareg Engine Option
3.2L 6-cylinder Engine Code BKW Y Diesel Turbo
Engine:
3.2L 6-cylinder BKW Y Diesel Turbo [aka 3.2L V6 (Gas)]
Body & Trims:
TDI
Oil Capacity:
6.7 quarts (with filter)
OEM Oil Filter:
Volkswagen 07Z-115-562 and Volkswagen 07Z-115-389-H
Oil Filter Replaces:
07Z-115-389-D
2004 Volkswagen Touareg 3.2L 6-cylinder BKW Y Diesel Turbo oil change details
Oil Grade:
SEO03
Oil Capacity:
6.7 quarts. (with filter). Capacity is with the filter installed. Add 0.5 Liters (0.5 quarts) less than the total capacity shown. Start the engine and let it run until it reaches approximately 60°C (140°F). Then, switch the engine off, wait 3 minutes, and check the dipstick. Add oil to reach the full mark. The final amount needed may be more or less than 0.5 Liters (0.5 quarts).
Oil Viscosity/Type:
SAE 5W-40, SAE 5W-30 (All TEMPS) - If a synthetic oil meeting the applicable Audi or Volkswagen quality standard with the recommended viscosity grade is unavailable, be sure to use a viscosity grade suitable for your climate, season, and driving conditions. Ensure the oil meets the listed Audi and Volkswagen oil quality standards.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
9.5 quarts
Oil Drain Plug Torque:
22 ft/lbs (Oil Drain Plug)
Notes:
N/A
4.2L 8-cylinder Engine Code BAA V
Engine:
4.2L 8-cylinder BAA V [aka 4.2L V8 (Gas)]
Body & Trims:
V6
Oil Capacity:
8 quarts (with filter)
OEM Oil Filter:
Oil Filter Replaces:
N/A
2004 Volkswagen Touareg 4.2L 8-cylinder BAA V oil change details
Oil Grade:
SEO03
Oil Capacity:
8 quarts. (with filter). Capacity is with the filter installed. Add 0.5 Liters (0.5 quarts) less than the total capacity shown. Start the engine and let it run until it reaches approximately 60°C (140°F). Then, switch the engine off, wait 3 minutes, and check the dipstick. Add oil to reach the full mark. The final amount needed may be more or less than 0.5 Liters (0.5 quarts).
Oil Viscosity/Type:
SAE 5W-40, SAE 5W-30 (All TEMPS) - If a synthetic oil meeting the applicable Audi or Volkswagen quality standard with the recommended viscosity grade is unavailable, be sure to use a viscosity grade suitable for your climate, season, and driving conditions. Ensure the oil meets the listed Audi and Volkswagen oil quality standards.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
9.5 quarts
Oil Drain Plug Torque:
37 ft/lbs (Oil Drain Plug)
Notes:
N/A
4.9L 10-cyl Engine Code AXQ U
Engine:
4.9L 10-cyl AXQ U [aka 4.9L V10 (Diesel)]
Body & Trims:
V8
Oil Capacity:
12.2 quarts (with filter)
OEM Oil Filter:
Oil Filter Replaces:
N/A
2004 Volkswagen Touareg 4.9L 10-cyl AXQ U oil change details
Oil Grade:
SEO05
Oil Capacity:
12.2 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 5W-40, SAE 5W-30 (All TEMPS) - If a synthetic oil meeting the applicable Audi or Volkswagen quality standard with the recommended viscosity grade is unavailable, be sure to use a viscosity grade suitable for your climate, season, and driving conditions. Ensure the oil meets the listed Audi and Volkswagen oil quality standards.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
13.7 quarts
Oil Drain Plug Torque:
22 ft/lbs (Oil Drain Plug)
Notes:
N/A
