2024 Ford F-350 HD Pickup Oil Capacity, Types, & Filters
Your essential guide to 2024 Ford F-350 HD Pickup oil change is here! No more searching – find all the critical oil specs for your 2024 Ford F-350 HD Pickup, including oil capacity, recommended oil viscosity (type), and the correct oil filter.
We cover all engine options, categorized by their specific engine codes, ensuring you get the right information for your specific configuration. Keep reading to discover everything you need for your next 2024 Ford F-350 HD Pickup oil change!
Scroll Table ➜
| Engine & Code | Oil Capacity | Oil Viscosity/Type | Oil Filter |
|---|---|---|---|
| 6.7L 8-cylinder [M] M Diesel Turbo | 15 quarts (with filter) | SAE 0W-40 (All TEMPS) SAE 10W-30 (Above -18°C) SAE 15W-40 (Above -7°C) SAE 5W-40 (Above -29°C) | Ford FL-2124-B12 Ford FL-2124-SW Ford FL-2124-S |
| 6.7L 8-cylinder [T] I Diesel Turbo | 15 quarts (with filter) | SAE 0W-40 (All TEMPS) SAE 10W-30 (Above -18°C) SAE 15W-40 (Above -7°C) SAE 5W-40 (Above -29°C) | Ford FL-2124-B12 Ford FL-2124-SW Ford FL-2124-S |
| 6.8L 8-cylinder [A] A | 8 quarts (with filter) | SAE 5W-30 (Above -29°C) | Ford FL-820-S |
| 7.3L 8-cylinder [N] N | 8 quarts (with filter) | SAE 5W-30 (Above -29°C) | Ford FL-820-S |
Select Your 2024 Ford F-350 HD Pickup Engine Option
6.7L 8-cylinder Engine Code [M] M Diesel Turbo
Engine:
6.7L 8-cylinder [M] M Diesel Turbo [aka 6.7L V8 (Diesel)]
Body & Trims:
King Ranch, Lariat, Limited, Platinum, XL, XLT
Oil Capacity:
15 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-40 (All TEMPS)
SAE 10W-30 (Above -18°C)
SAE 15W-40 (Above -7°C)
SAE 5W-40 (Above -29°C)
OEM Oil Filter:

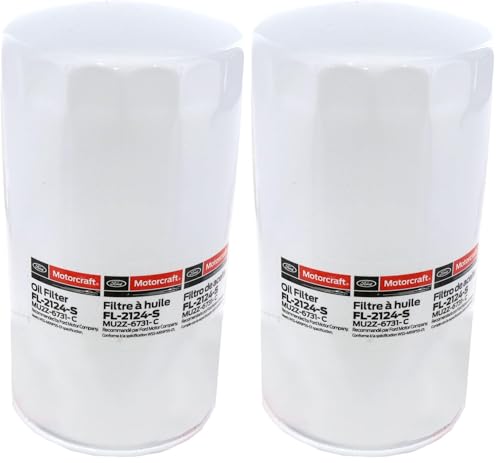

Ford FL-2124-B12, Ford FL-2124-SW and Ford FL-2124-S
Oil Filter Replaces:
BC3Z-6731-A, BC3Z-6731-B, FL-2051-S
2024 Ford F-350 HD Pickup 6.7L 8-cylinder [M] M Diesel Turbo oil change details
Oil Grade:
SEO84
Oil Capacity:
15 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-40 (All TEMPS) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
SAE 10W-30 (Above -18°C) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
SAE 15W-40 (Above -7°C) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
SAE 5W-40 (Above -29°C) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
10 quarts - This capacity is for the Secondary Cooling System (CSYS). - This is the capacity for the Urea Injector Cooling and Cooled Compressor systems.
8.2 quarts - This capacity is for the Secondary Cooling System (CSYS). - For models equipped with Urea Injector Cooling.
33.3 quarts - For the Primary Cooling System (CSYS) on models With an auxiliary radiator (AUX RAD).
31.7 quarts - This capacity is for the Primary Cooling System (CSYS).
Oil Drain Plug Torque:
19 ft/lbs (Oil Drain Plug)
Notes:
N/A
6.7L 8-cylinder Engine Code [T] I Diesel Turbo
Engine:
6.7L 8-cylinder [T] I Diesel Turbo [aka 6.7L V8 (Diesel)]
Body & Trims:
King Ranch, Lariat, Limited, Platinum, XL, XLT
Oil Capacity:
15 quarts (with filter)
Oil Viscosity/Type:
SAE 0W-40 (All TEMPS)
SAE 10W-30 (Above -18°C)
SAE 15W-40 (Above -7°C)
SAE 5W-40 (Above -29°C)
OEM Oil Filter:
Ford FL-2124-B12, Ford FL-2124-SW and Ford FL-2124-S
Oil Filter Replaces:
BC3Z-6731-A, BC3Z-6731-B, FL-2051-S
2024 Ford F-350 HD Pickup 6.7L 8-cylinder [T] I Diesel Turbo oil change details
Oil Grade:
SEO84
Oil Capacity:
15 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Viscosity/Type:
SAE 0W-40 (All TEMPS) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
SAE 10W-30 (Above -18°C) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
SAE 15W-40 (Above -7°C) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
SAE 5W-40 (Above -29°C) - The manufacturer recommends SAE 10W-30 for normal usage and SAE 5W-40 for severe operations. If using biodiesel fuel blends (B20 maximum), the use of SAE 5W-40 or SAE 15W-40 oil is recommended.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
31.7 quarts - This capacity is for the Primary Cooling System (CSYS).
33.3 quarts - For the Primary Cooling System (CSYS) on models With an auxiliary radiator (AUX RAD).
8.2 quarts - This capacity is for the Secondary Cooling System (CSYS). - For models equipped with Urea Injector Cooling.
10 quarts - This capacity is for the Secondary Cooling System (CSYS). - This is the capacity for the Urea Injector Cooling and Cooled Compressor systems.
Oil Drain Plug Torque:
19 ft/lbs (Oil Drain Plug)
Notes:
N/A
6.8L 8-cylinder Engine Code [A] A
Engine:
6.8L 8-cylinder [A] A [aka 6.8L V8 (Gas)]
Body & Trims:
King Ranch, Lariat, Platinum, XL, XLT
Oil Capacity:
8 quarts (with filter)
Oil Viscosity/Type:
SAE 5W-30 (Above -29°C)
OEM Oil Filter:
Oil Filter Replaces:
F1AZ-6731-A
2024 Ford F-350 HD Pickup 6.8L 8-cylinder [A] A oil change details
Oil Grade:
SEOB4
Oil Capacity:
8 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Oil Drain Plug Torque:
19 ft/lbs (Oil Drain Plug)
Notes:
N/A
7.3L 8-cylinder Engine Code [N] N
Engine:
7.3L 8-cylinder [N] N [aka 7.3L V8 (Gas)]
Body & Trims:
King Ranch, Lariat, Platinum, XL, XLT
Oil Capacity:
8 quarts (with filter)
Oil Viscosity/Type:
SAE 5W-30 (Above -29°C)
OEM Oil Filter:
Oil Filter Replaces:
F1AZ-6731-A
2024 Ford F-350 HD Pickup 7.3L 8-cylinder [N] N oil change details
Oil Grade:
SEOB4
Oil Capacity:
8 quarts. (with filter). This is the capacity with the oil filter installed. Always check the oil level after refilling.
Name of Oil Filter:
N/A
Wix Oil Filter:
N/A
Wix Air Filter:
N/A
Coolant Capacity:
22.5 quarts
Oil Drain Plug Torque:
19 ft/lbs (Oil Drain Plug)
Notes:
N/A
